28 Gallon Slim Fuel Tank

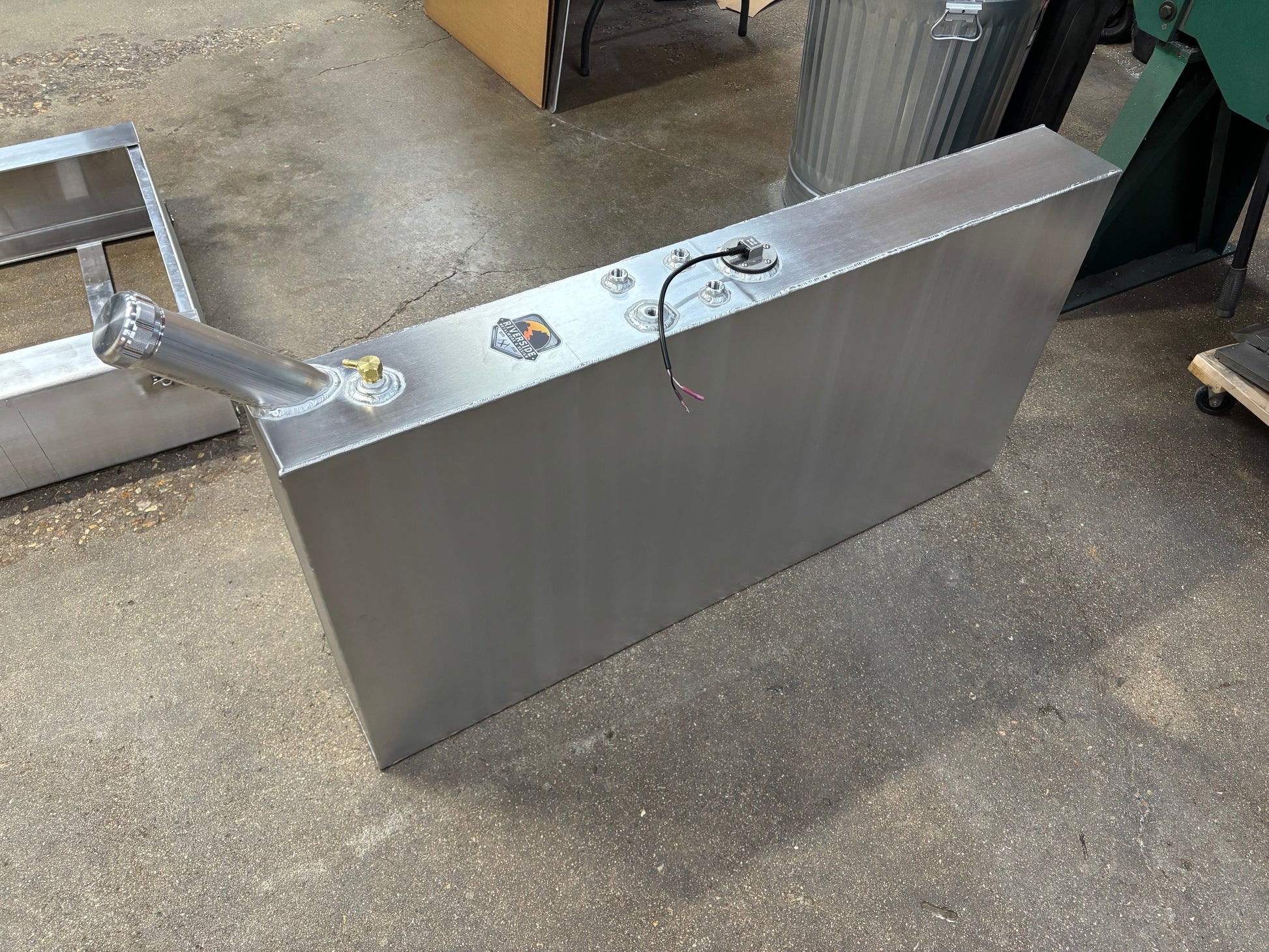

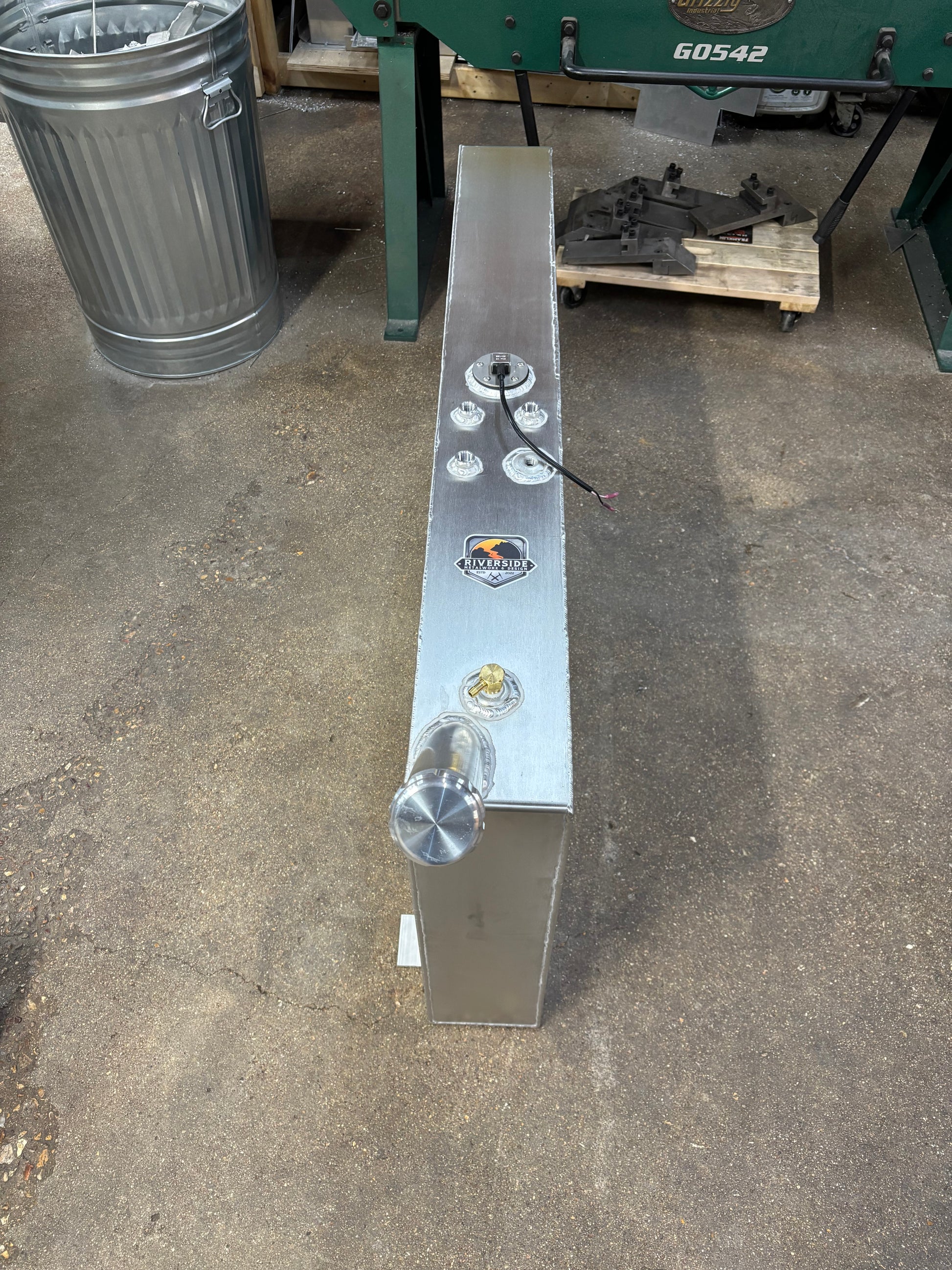

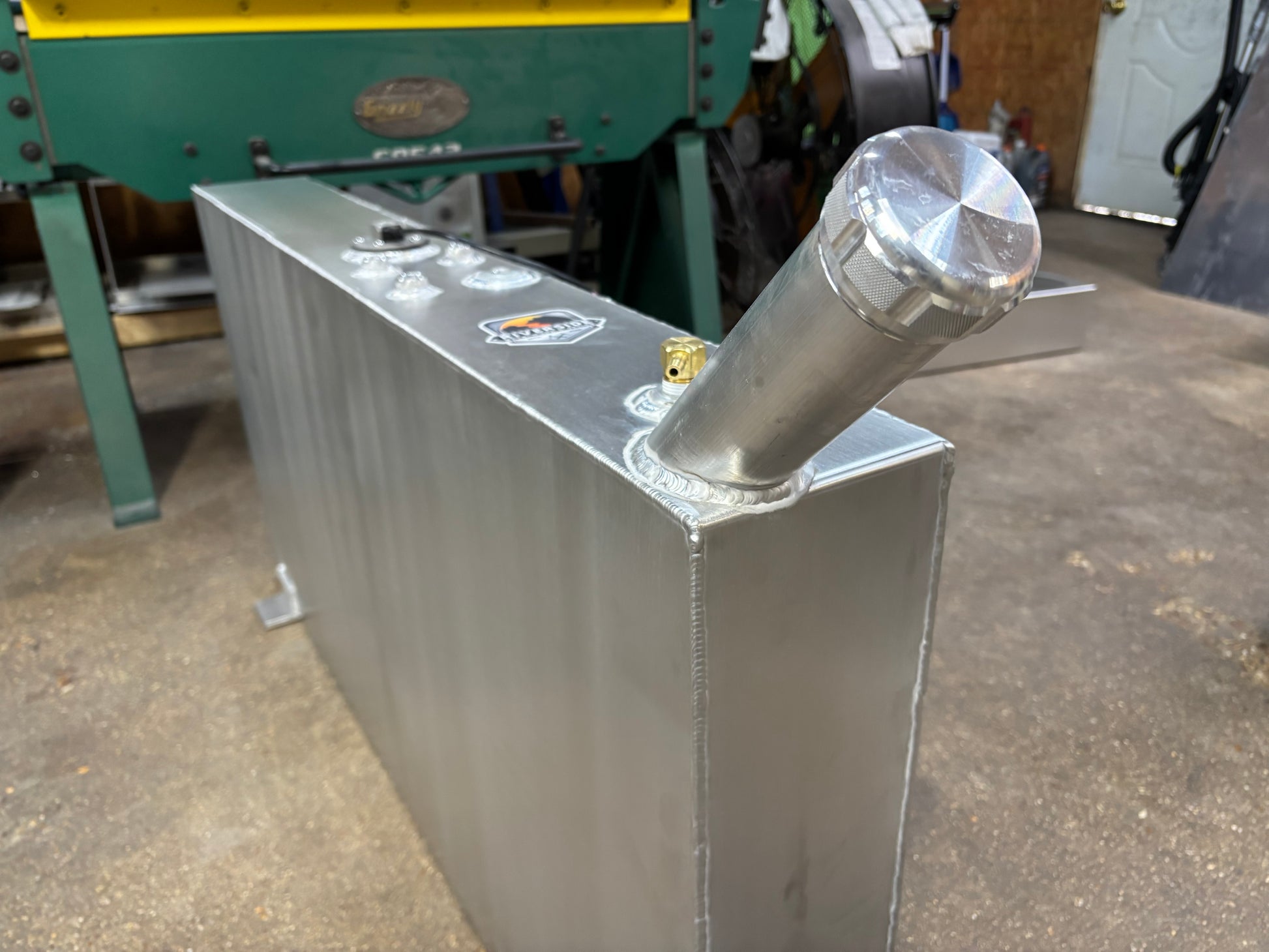

Our 28 Gallon universal aluminum auxiliary fuel tank is perfect for skids or other applications that require a compact footprint and enough capacity to run multiple machines all day without fill ups. The 6" x 47.75" footprint incorporates perfectly into skid builds with 2+ engines to run and a 24" height makes filling access easy. Straight or angled neck available. Baffle installed inside tank to reduce sloshing and prolong life of tank. All of our fuel tanks are built and pressure tested in house to ensure they’re 100% leak free. They are constructed from 1/8” aluminum sheet to avoid cracking due to flexing or flimsiness. These are quality tanks built to last.

Dimensions: 47.75”L x 6”W x 24”H

Footprint 47.75” x 8”

Fuel tanks come standard with:

• Threaded Aluminum Cap
• Two 3/8” FNPT Pickup Tubes
• 1/2” FNPT Port (For venting, use with non vented cap)
• 1/4” FNPT Return Port
• CNC Milled Sending Unit Flange (Fuel Gauge or Block Off Plate Sold Seperately)

Extras & Add Ons Available:

• Extra Pickup Tubes $50/ea
• Mechanical or Electronic Fuel Gauge $79+
• Rollover Vent & Non Vented Cap $31
• Plumbing Kits $70+
• Billet Aluminum or Plastic Cap

Unless in stock, fuel tanks usually have a 1-3 week lead time.

**IMPORTANT**

** If not using a fuel gauge, the "No Gauge/Block Off Plate" option will need to be chosen for tank to come sealed. All universal tanks come standard with a 5 hole sending unit/gauge port.

** Vented caps will leak slightly from sloshing when the tank is full. To avoid this use a non vented cap and rollover vent.

**If installing in an enclosed space such as a van or box truck cargo area, we recommend using a non vented cap and rollover vent to avoid cap leakage, and direct vapors safely out of the compartment via the rollover vent hose barb.

**We DO NOT RECOMMEND splitting one pickup tube for multiple engines. Most engine manufacturers recommend 1 pickup tube per engine.

** These tanks are guaranteed to be leak free, functional, and meet the specifications above. We’ve found from our experience that they meet or exceed industry standards for auxiliary fuel tanks. RIVERSIDE METALWORK IS NOT RESPONSIBLE FOR ENSURING COMPATIBILITY OR PROPER INSTALLATION/OPERATION OF TANKS WITH YOUR SPECIFIC APPLICATION. IF YOU ARE UNSURE OF COMPATIBILITY OR HOW TO INSTALL WITH YOUR SYSTEM PLEASE CONSULT WITH US OR YOUR PREFERRED MECHANIC BEFORE PURCHASING.
